Automatic Fixed Drone Detector with 100MHz-6000MHz Frequency and 10 Km Detection Range for Anti-Drone Security
Contacte-me para amostras e cupons grátis.
Whatsapp:0086 18588475571
Conversamos: 0086 18588475571
Skype: sales10@aixton.com
Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.
xDetalhes do produto
| Aplicativo | Antidrone | Recurso | Durável |
|---|---|---|---|
| nome | Detecção e localização fixa de drones com automático | Modelos de drones localizáveis | Dji Mavic Air Mini Fpv Avata etc. |
| Banda de frequência de detecção | 100 MHz--6000 Hz | Faixa de detecção | 1 a 10 km |
| adaptabilidade ao ambiente | -20~65°C | Atraso de detecção | < 1 minuto |
| Destacar | fixed drone signal detection system,10 km drone location security,100MHz-6000MHz countermeasures system |
||
Descrição de produto
Fixed Drone Detection & Location & Countermeasure System
System Overview
Automatic 100MHz-6000MHz countermeasures system for fixed drone signal detection and location within 10 km security perimeter.
Main Interface Components
The system interface contains 5 working areas:
- Title bar
- GIS map
- Shortcut toolbar
- Locate/Detect list
System Title Bar
Includes Logo, title, language switching function buttons, and system time display. Logo and title can be customized in system settings.
GIS Map Area
The central area displays equipment location, warning area, pilot position, drone position, and flight trajectory.

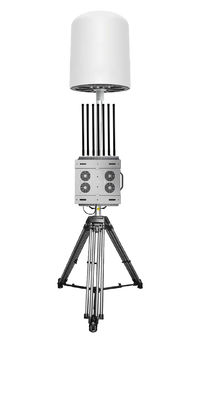

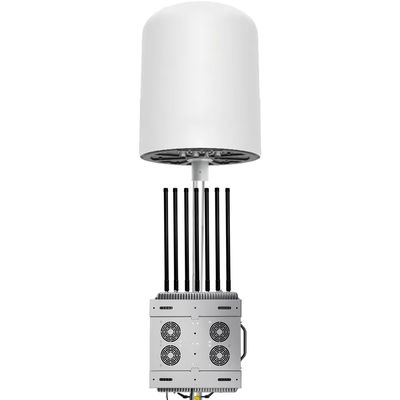

Product Composition
The system consists of five main components:
- Device host
- Tripod
- Power cable
- Countermeasure device
- Bracket
Function Parameters
- Drone monitoring: Obtains serial number, model, position, speed, altitude, takeoff/return points, and flight trajectory
- Unique ID identification: Identifies drone serial numbers for unique identification
- UAV positioning: Displays real-time position (longitude/latitude), azimuth, and distance information
- Pilot positioning: Locates remote control position with real-time display
- Multi-target trajectory tracking: Tracks and displays multiple drone flight paths simultaneously
- Black/White List: Differentiates between cooperative and non-cooperative drones
- Intrusion alarm: Audible/visual alerts for drone detection
- Track playback: Reviews historical flight data for analysis
- Detection records: Preserves multidimensional detection history
- Data visualization: Presents analysis through heat maps and charts
- Electronic maps: Supports multiple map providers (Gaode, Bing, Baidu, Google)
- Multi-unit networking: Enables large area coverage through backend platform connection
- Inspection-strike linkage: Integrates with countermeasure devices
- Multiple device networking: Improves positioning accuracy through TDOA equipment integration
| Number | Index | Parameter | Notes |
|---|---|---|---|
| 1 | Detection and identification of drone types | DJI series drones, FPVs, Xiaomi, Yuneec, Hubsan, Powervision, Tello drones etc. | |
| 2 | Localizable drone models | DJI mavic, air, mini, FPV, avata, etc. | |
| 3 | Detection frequency band | 100MHz-6000Hz | |
| 4 | Detection and positioning distance | 1-10km | Depending on the environment |
| 5 | Detection height | 0m-1000m | |
| 6 | Number of targets that can be detected simultaneously | ≥5 sorties | |
| 7 | Capable of simultaneously tracking and displaying drone trajectories | ≥5 strips | |
| 8 | Azimuth error | ≤1.5°(RMS) | |
| 9 | Positioning accuracy | ≤10m | |
| 10 | Detection success rate | ≥95% | |
| 11 | Identify response time | ≤5s |
Certifications
Frequently Asked Questions
1. How long is the production lead time?
The production lead time varies depending on the product and order quantity. Generally, it takes around 7-15 days after receiving the deposit.
2. Can I customize the product?
Yes, power and frequency band can be customized according to your needs.
3. What is your payment term?
We accept various payment methods, including T/T (Telegraphic Transfer), PayPal, and Alibaba Trade Assurance. Payment terms are typically 30% deposit and 70% balance before shipment.
4. How do you ensure product quality?
We have a strict quality control process, including raw material inspection, in-production checks, and final quality inspections before shipment.
5. What shipping methods are available?
We offer multiple shipping options, including sea freight, air freight, and express courier (DHL, FedEx, UPS, etc.).
6. Can I track my order?
Yes, we will provide you with a tracking number once your order is shipped.
7. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including technical assistance and warranty services.
